Patricchio's Prototypes Toys & Games - Skittles

Pictured below is my first Skittle Game Box with Tops and Pins made in fall 2004.
The box turned out beautiful and it functions perfectly.

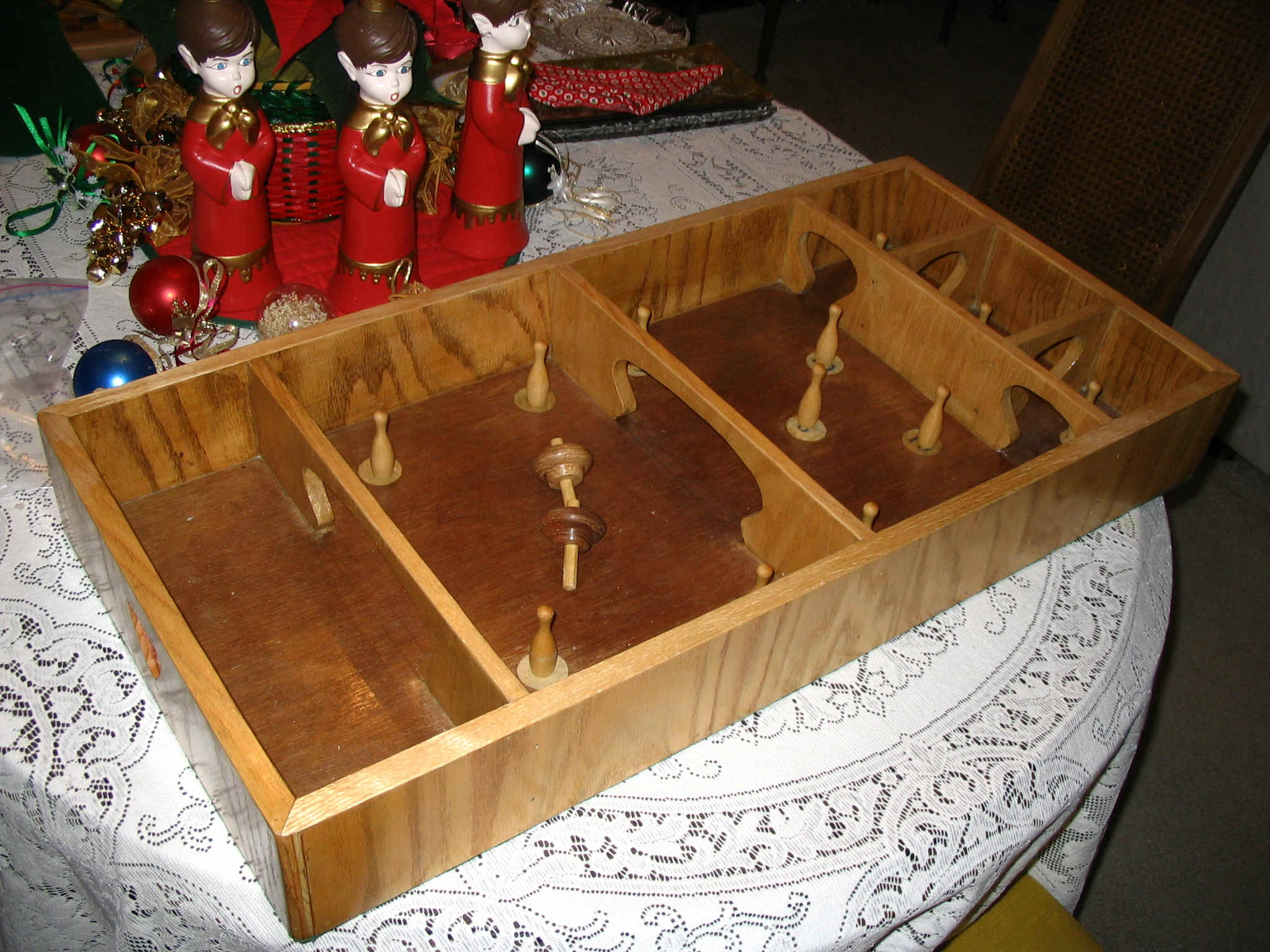

Skittle Box

The prototype box is a combination 3/4" white oak veneered plywood walls, a
1/2" white oak ply floor with a 1/4" mahogony veneer playing surface with inlayed
white hardwood pin placements in the tradition of Fr. Victor Zehnder, S.J.

Maple/Brass Inlay

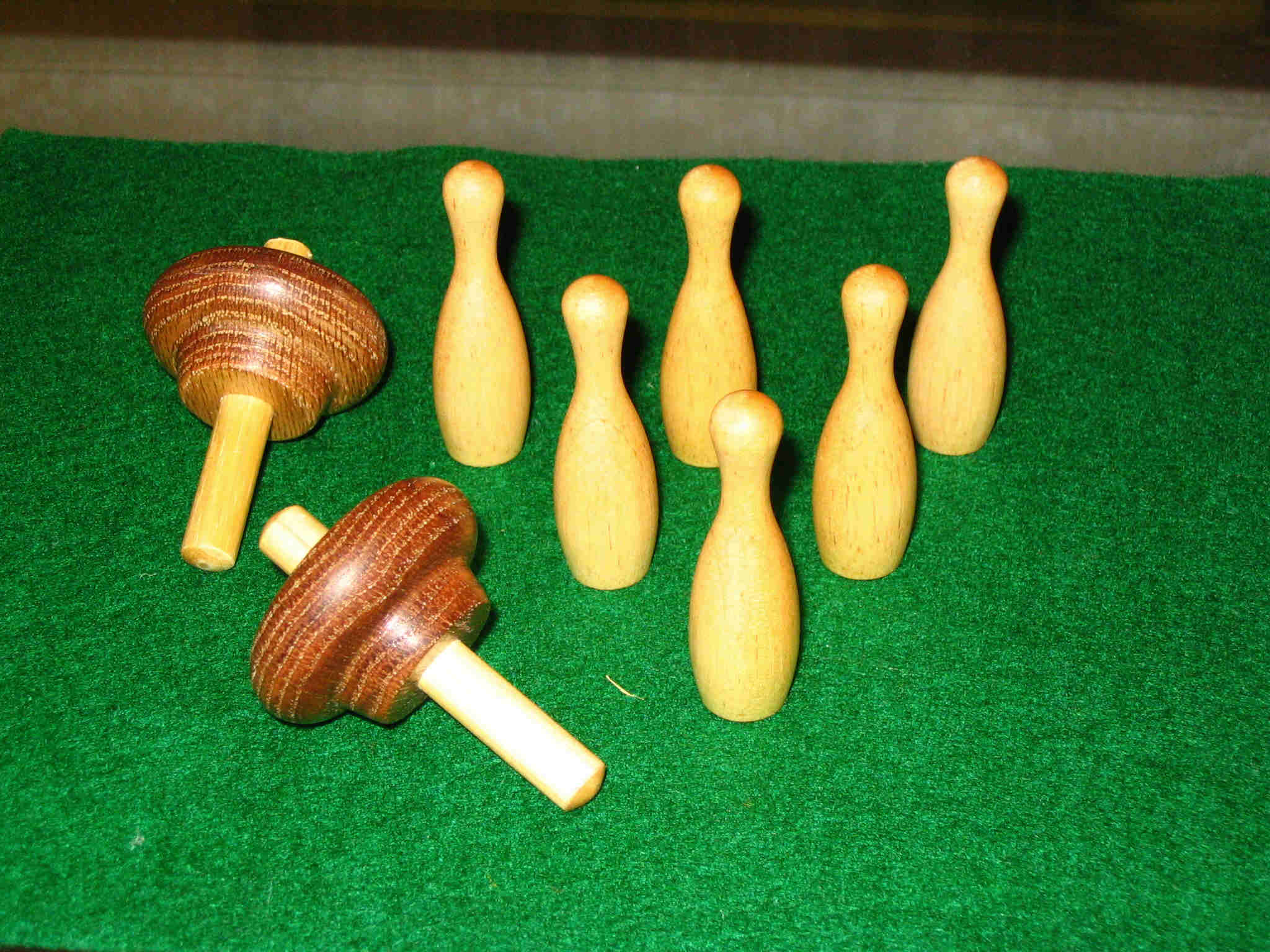

The pins are CNC machined from 3/4" white hardwood dowels.
The top bodies are machined from red oak and the shafts are made with white
hardwood dowels.

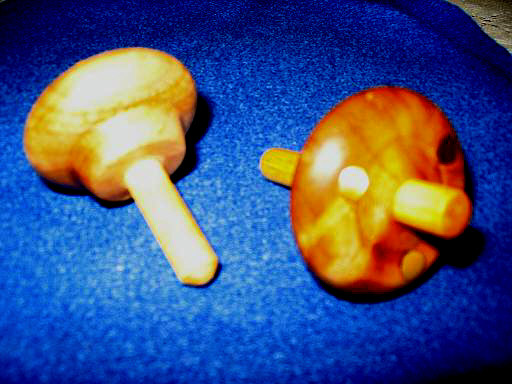

Top with Brass Inlay
Maple Top with Brass Inlay.

I have now engineered the tops to have a brass rod inlay in the top for
creating proper weighting and performance in lighter hardwoods.

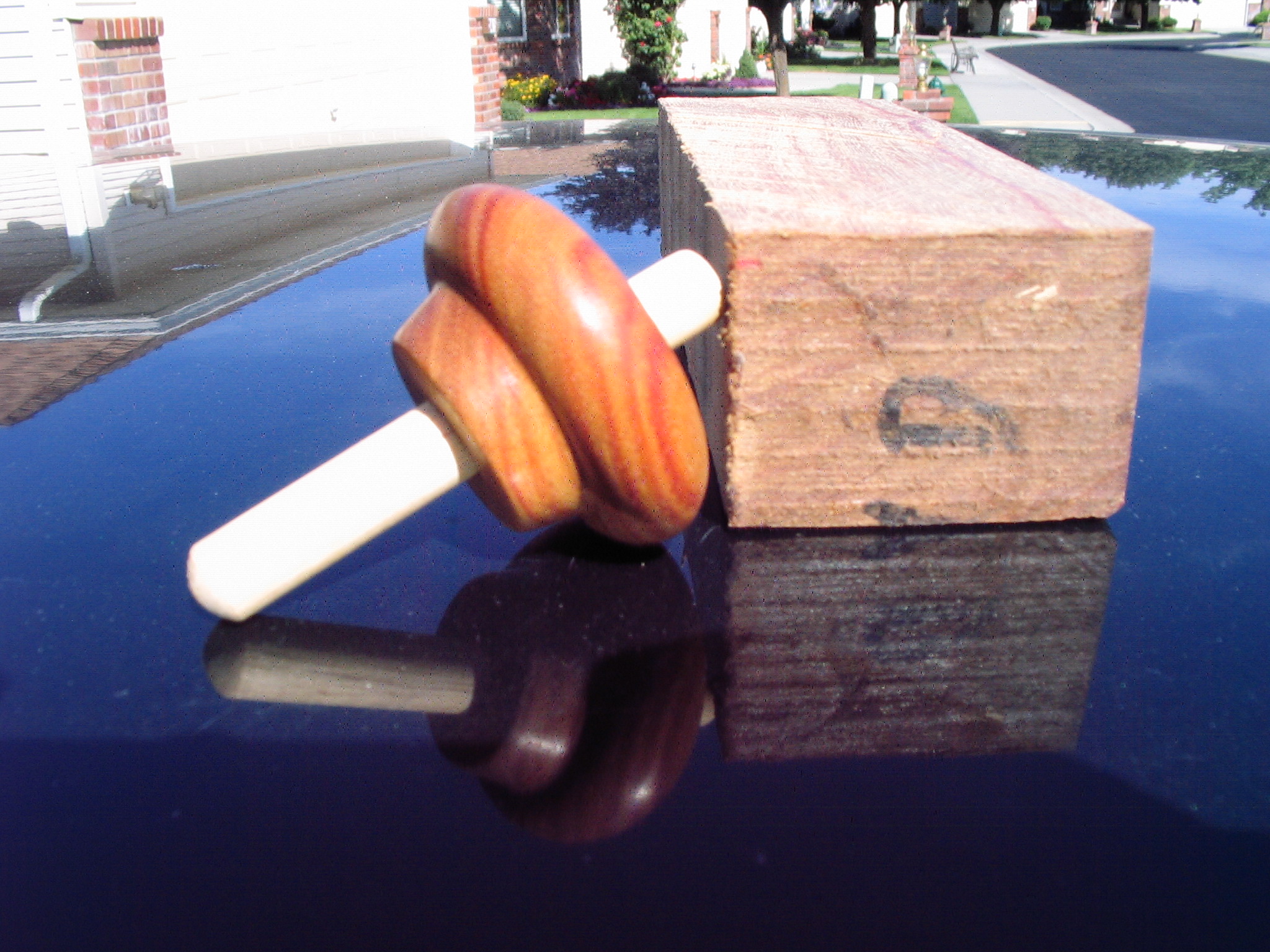

Pau Rosa Top with Blank
Pau Rosa Top with Blank.

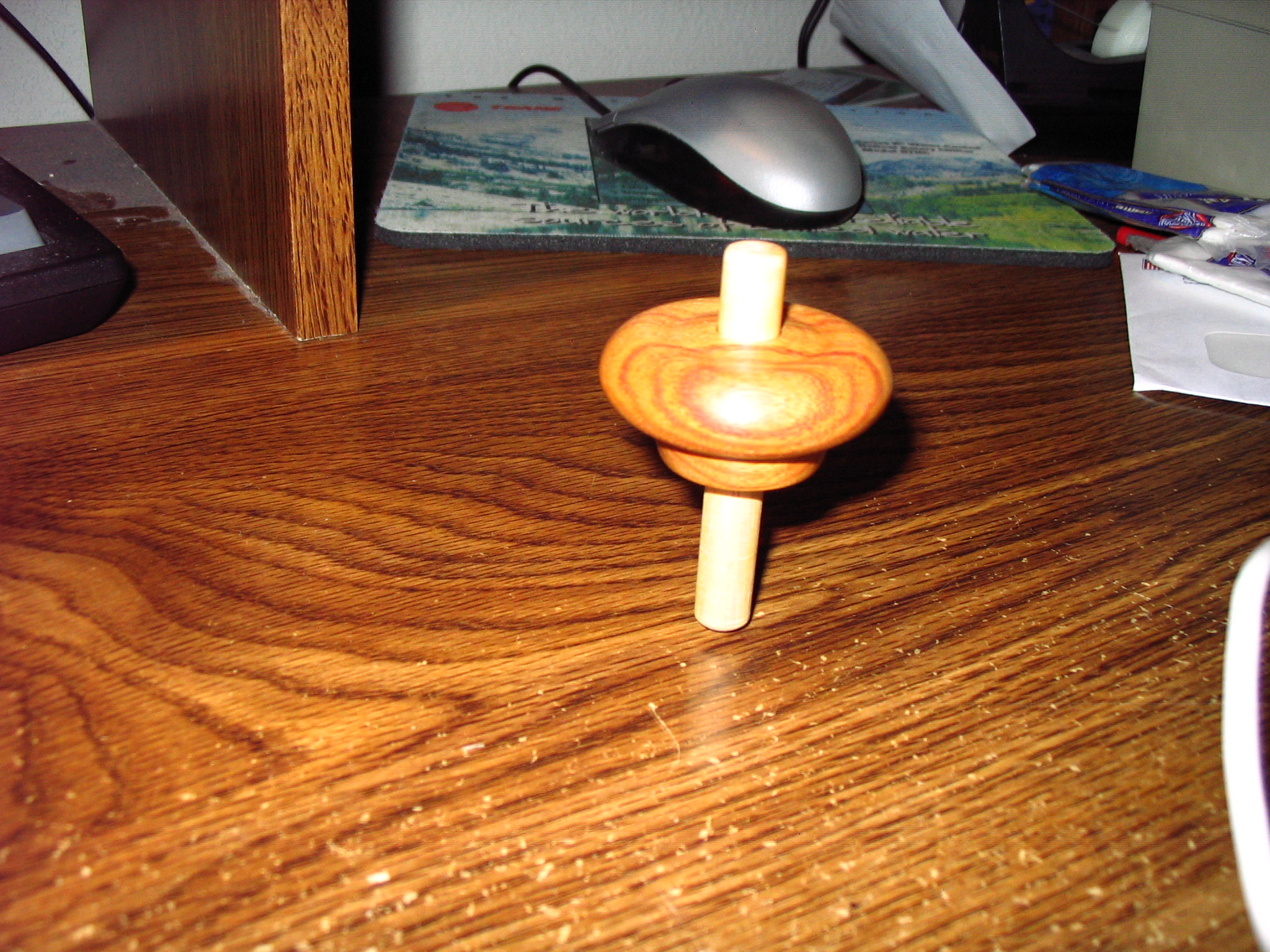

Pau Rosa Top Spinning
Pau Rosa Top Spinning.

In addition to Brass Inlaid Maple Skittle Tops, I have recently have been exploring heavier exotic woods for my tops. I made a set from Pau Rosa Wood which turned beautifully, and now have some Spotted Gum Wood and some Green Lignum Vitae Heart Wood (Greenheart) for experimentation.

I am contemplating designing a new Skittle Box which has an even more stylized Patricchio's Prototypes look and feel.

Top in Action

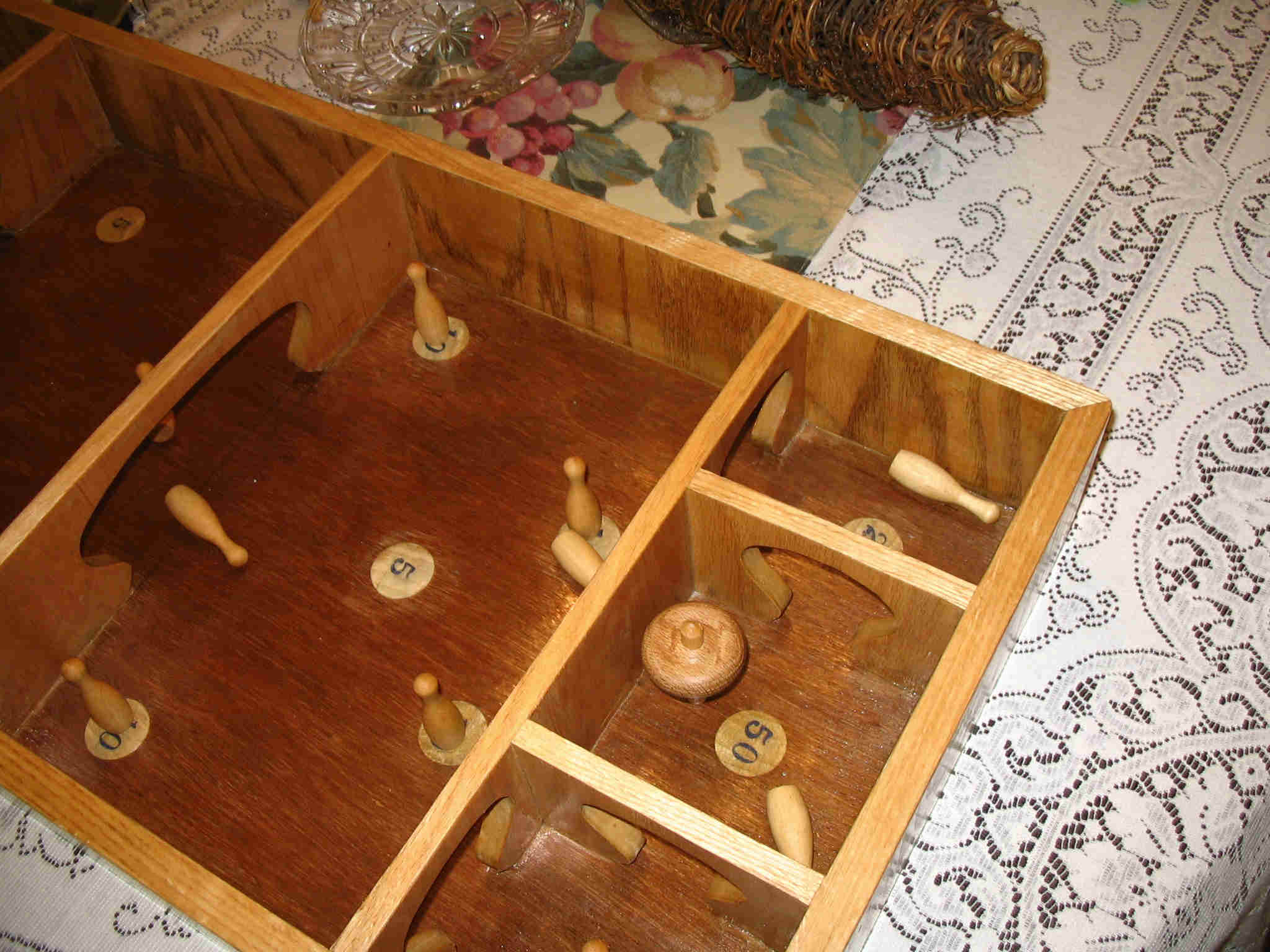

I was introduced to Skittles when my Uncle Ken gave a "Merdel" Skittles set to my brothers for Christmas approximately forty years ago. I was too young to play the game and watched as my brothers and Uncle Ken played. When I was big enough to play, I played for hours at a time.

The game was placed in a non climate controlled storage room when we moved to the Seattle area from Spokane for work opportunities. Our stint in Seattle lasted about four years and we moved back to Spokane. We still have stuff in that storage room after about eighteen years.

I removed the Skittle game from storage in Summer 2004 to use the pins and tops for patterns to use to make the cad drawings to create the initial CAM programs for my computer controlled machine shop.

After the years in storage, the original game became warped to the point that the tops gravitated to a dead spot on the board and just hovered. I was tempted to modify the old box so it would work properly, but decided against it since it is now considered an heirloom. The set still resides in its original package when not used.

In the light of the fact the original set does not work the way I am accustomed, I decided to make my own box using better materials and the sophisticated box making methods taught to me by Fr. Victor Zehnder S.J. (Father was also my freshman Algebra teacher at Gonzaga Prep in Spokane, Washington.)

You will find my Skittle sets to perform better and more violently than the original mass produced "Merdel" brand sets, plus have that fine custom finish.

E-mail me at patsprotos@gmail.com or call me at (509) 448-8133 for your own custom set or components.
